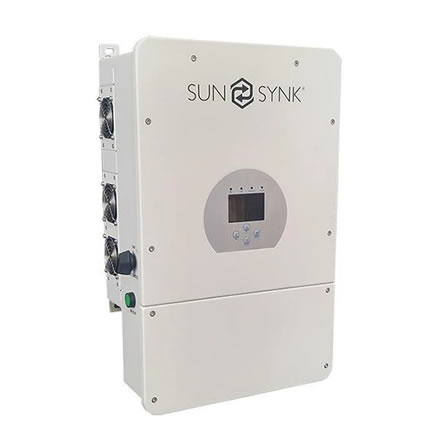

Name: Sunsynk Sun 8K Hybrid Inverter
SKU: SUN-8.0
Availability: InStock

Add to cart

Compare

Deye 8kW Hybrid Inverter

R33,000.00 incl. VAT

Improve self-consumption ratio up to 80%, reducing your electricity bill.
DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
Two MPPT design, Max. efficiency of 97.6%.

Colourful Touch LCD Screen
Parallel up to 16 Units
Max Charging/Discharging Current of 190A
Compact & Stylish
Safe and Easy Installation
5-year warranty
Set system parameters remotely with FREE SOLARMAN PRO App

If installed with a Deye battery, the warranty on the inverter will increase to 10 Years.

Higher Yields

Improve self-consumption ratio up to 80%
Reducing your electricity bill DC/AC ratio up to 1.3
Completely suitable for double-side PV modular Two MPPT design
Maximum efficiency of 97.6%

User Friendly

LCD Touch screen and buttons
Easy operation Compatible with a lithium-ion battery and lead-acid battery
Web browser and mobile App monitoring supported

Reliable

PV lightning protection
Anti-islanding protection
Leakage current protection
IP65 protection
Automatically switch from Grid-Tied to Off-Grid mode within 5ms
Zero export function – prevents the system from feeding in to the grid. NRS Approved
Fast reaction time is within 200ms in zero export mode

Smart

Programmable charging and discharging schedule
Both wind turbines and solar panels can be connected as DC input power
16 units can be paralleled for higher system power
Retrofitting of an existing solar system to an energy storage system

Compare

Deye 12KW 3 Phase Hybrid Inverter

R47,100.00 incl. VAT

Includes: Wi-Fi Dongle + BMS Communication Cable

Higher yields.

Improve self-consumption ratio up to 80%, reducing your electricity bill.
DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
Two MPPT design, Max. efficiency of 97.6%.

User-friendly.

LCD Touch screen and buttons, easy operation.
Compatible with lithium-ion battery and lead acid battery.
Web browser and mobile App monitoring supported.

Reliable.

PV lighting protection, Anti-islanding protection, Leakage current protection etc.
Support store energy from DG when needed, ensure the system working within 7*24H.
IP65 protection degree, adapt to indoor and outdoor using.
Automatically switch from on-grid to off-grid mode within 5ms.
Zero exporting function, fast reaction within 200ms in zero export mode.

Smart.

Programmable charging and discharging schedule.
Both wind turbines and solar panels can be connected as DC input power.
Max. 16 units can be paralleled for higher system power.
Retrofitting of existing solar system to energy storage system.

Features:

100% unbalanced output, each phase Max. output up to 50% rated power.
48V low voltage battery, transformer isolation design.
6 time periods for battery charging/discharging.
Max. charging/discharging current of 240A.
Frequency droop control.
DC couple and AC couple to retrofit existing solar system.
Support storing energy from diesel generator

Battery Input Data

Battery Type: Lead-acid or Li-lon
Battery Voltage Range (V): 40-60V
Max. Charging Current (A): 240A
Max. Discharging Current (A): 240A
Charging curve: 3 Stages/Equalization
External Temperature Sensor: Optional
Charging Strategy for Lithium Battery: Self-adaption to BMS

PV String Input Data

Max. DC Input Power (W): 15600W.
PV input Voltage (V): 550V (150V-800V).
MPPT Range (V): 200-650V.
Start-up Voltage (V): 160V.
PV Input Current (A): 25A + 125.5A.
No. of MPPT Trackers: 2
No. of Strings Per MPPT Tracker: 2+1.

AC Output Data

Rated AC Output and UPS Power (W): 12000W
Max AC Output Power (W): 13200W
Peak Power(off-grid): 2 times of rated power, 10 S.
AC Output Rated Current(A): 18A
Max.AC Current(A): 27A
Max Continuous AC Pass-through(A): 50A.
Output Frequency and Voltage: 50/60Hz; 230/400Vac (Three Phase)
Grid Type: Three Phase
Current Harmonic Distortion: THD<3% (Linear load<1.5%).

Efficiency

Max. Efficiency: 97.60%
Euro Efficiency: 97.00%
MPPT Efficiency: 99.90%

Protection

PV Arc Fault Detection: Integrated (Except European Type)
PV Input Lightning Protection: Integrated
Anti -islanding Protection: Integrated
PV String Input Reverse Polarity Protection: Integrated
Insulation Resistor Detection: Integrated
Residual Current Monitoring Unit: Integrated
Output over Current Protection: Integrated
Output Shorted Protection: Integrated
Output over Voltage Protection: Integrated

Certifications and Standards

Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
Safety Regulation: IEC62109-1, IEC62109-2
EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B

General Data

Operating Temperature Range ( C ): -25—60 C , >45 C Derating
Cooling: Fan
Noise (dB): <30
Communication with BMS: RS485; CAN
Weight (kg): 37
Size (mm): 422W X 685H X 281mm
Protection Degree: IP65
Installation Style: Wall-mounted
Warranty: 5 years

Deye 12kW User Manual

Compare

Deye 5kW Hybrid Inverter

R20,300.00 incl. VAT

Key Features

LCD Touch screen and buttons, easy operation
Compatible with lithium-ion battery and lead acid battery
Web browser and mobile App monitoring supported
Improve self-consumption ratio up to 80%, reducing your electricity bill
DC/AC ratio up to 1.3, completely suitable for double-side PV modular
Two MPPT design, Max. efficiency of 97.6%
Programmable charging and discharging schedule
Both wind turbines and solar panels can be connected as DC input power

With the versatility of the Deye 5kW Hybrid Inverter you can:

Use it like a Grid-Tied, with panels only
Use it as a Load Shedding Solution, with batteries only
Use it in an Off-Grid situation, not connected to the grid
Use it in an On-Grid situation, connected to the grid
Use it as a UPS (Uninterrupted Power Supply)

Compare

Sunsynk 10kW 1P Hybrid PV Inverter 48v C/W Wifi Dongle IP65

R41,000.00 incl. VAT

Description

Introducing the 10kW Sunsynk single phase Inverter: Harnessing the Power of the Sun for Greater Energy Independence

Designed for optimal performance and efficiency, the 10kW Sunsynk Inverter is a cutting-edge solution for residential and commercial solar systems. With its advanced technology and sleek design, this inverter seamlessly integrates into your solar power setup, maximizing energy production and minimizing environmental impact.

Key Features

High Efficiency:

The Sunsynk Inverter boasts high conversion efficiency, ensuring maximum energy harvest from your solar panels using 3 MPPT’s so more roof space can be utilised for North, East and West.

Intelligent Monitoring:

With built-in monitoring capabilities, users can easily track energy production and system performance in real-time.

Reliable Performance:

Engineered for durability and reliability, the Sunsynk Inverter delivers consistent performance even in challenging environmental conditions.

Grid Connectivity:

Seamlessly connect to the grid for optimal energy management and grid stability.

User-Friendly Interface:

Intuitive interface allows for easy setup and operation, making it accessible for both homeowners and professionals.

Scalable Design:

Expandable design enables system scalability, accommodating future energy needs effortlessly.

Experience the Future of Solar Energy with the 10kW Sunsynk Inverter. Contact us today to learn more about how this innovative technology can revolutionize your solar power experience.

10kW Sunsynk Datasheet

Add to cart

Compare

Add to cart

Compare

Luxpower SNA5000 5kW Off Grid Inverter

R10,900.00 incl. VAT

Luxpower 5kW Off-Grid Inverter – SNA 5000 is a versatile, advanced solar inverter designed for off-grid and hybrid systems. It offers several key features that make it a powerful and efficient choice for residential and commercial applications. Key features include

Key Features

Intelligent Off-Grid & Hybrid modes
PV and AC Power can power loads simultaneously
2 x MPPT’s with wide input voltage range.
BMS communication to most leading brands of Batteries (See List)
Free monitoring via app and remote upgrades.
Single or unbalanced three phase
Parallel up to 10 units.
Independent generator interface.

Solar Select LuxPower SNA 5000

Battery Compatability list

BYD
Dyness
Hubble
Lithium Batteries SA
PylonTech
Shoto
Revo.

Support:

supportsa@luxpowertek.com

Luxpower Eco Hybrid SNA Easter Training- https://youtu.be/a4v5ponUACo

Luxpower Parallel Training- https://www.youtube.com/watch?v=6X70rwq2xQY&t=963s

Luxpower WiFi Connection- https://youtu.be/mOc4qx3mQzQ

Luxpower ECO SNA to Pylon- https://youtu.be/EAsdUTL-3ww

Luxpower Monitior System Setup- https://youtu.be/cuDiuXLReX8

Luxpower SNA Connection & WiFi Setup- https://youtu.be/GFzD18L0id4

Build-in BMS(Battery management System) -BMS Compatible with Volta, BYD, Dyness, Pylon, Revov, Shoto, CFE and UZ Energy.

General:
Model: SNA 5000 WPV
Warranty: 2years.
Battery voltage: 48VDC.

Output:
Rated power: 5000W/5000VA.
Parallel capacity: YES.
Normal output voltage: 230/240, Split phase 220/110 Vac.
Normal output frequency: 50/60Hz.
Surge power: 10000VA.
Switch time: 10ms.
Waveform: Pure sine wave.

Battery:
Battery Type: Lithium/Lead-Acid.
Normal Voltage: 51.2V/48V.
Max. Charge Voltage: 59V.

Solar:
Max. Recommended PV Power: 3200W/3200W.
MPPT Tracker: 2.
Max. PV Open Circuit Voltage: 480Vdc.
MPPT Voltage Range: 100-385Vdc.
Max. Solar Charge Current: 100A.
Max. Solar Input Current: 13A/13A.
Max. MPPT Eiciency: >98%.
Parallel MPPT Charger: YES.

Grid:
Normal Voltage: 230Vac.
AC Voltage Range: 110-280Vac.
Max. Charge Current: 60A.
Frequency Range: 50/60Hz (Auto Sensing).

Protection DegreeIP20.
Relative Humidity5%~95% Relative Humidity (Non-condensing).
Operating Temperature0°C~50°C.
Storage Temperature-15°C~60°C.
Interface.

Display: LCD+LED.
Lithium Battery Communication: CAN/RS485.
RS485/Dry Connector: YES/YES.
Wifi/GPRS: YES/YES.
Warranty: 2 years.

- Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.

Add to cart

Compare

Facebook Post – Service Update Notification

kodak solar off grid inverter max 7.2kw-48v

R0.00 incl. VAT

The KODAK OG-7.2 Max Off-Grid inverter is a 7200 watt inverter. This inverter boasts dual 4kW MPPT’s which adds flexibility to your design. The OG-7.2 can parallel up to 6 units in a single or 3-phase configuration for a total of 43200kW. The OG-7.2 has a RGB light that changes colours depending on the inverter’s current working mode.

Features:

Built in Wi-Fi for online monitoring via the IOS or Android app
BMS communication via RS485, makes it compatible with Pylontech and KODAK batteries
Compatible with utilities main or generator
Built-in anti-dust kit
Dual 4kW MPPT’s
Parallel up to 6 units in single or 3-phase
High Voltage MPPT, less PV cable means less cost and less labour
3 year warranty

When using a battery bank with less than 7200W continuous discharge, please ensure Program 41 is set according to the continuous discharge current of battery bank. ie. 1x FL5.2 battery = 100A discharge. Then set program 41 = 100A

Downloads:

Sunsynk Sun 8K Hybrid Inverter
