New Tech Power-Specialists in Renewable and Electrical Installations
  • /
  • /
  • Sunsynk 10kW 1P Hybrid PV Inverter 48v C/W Wifi Dongle IP65

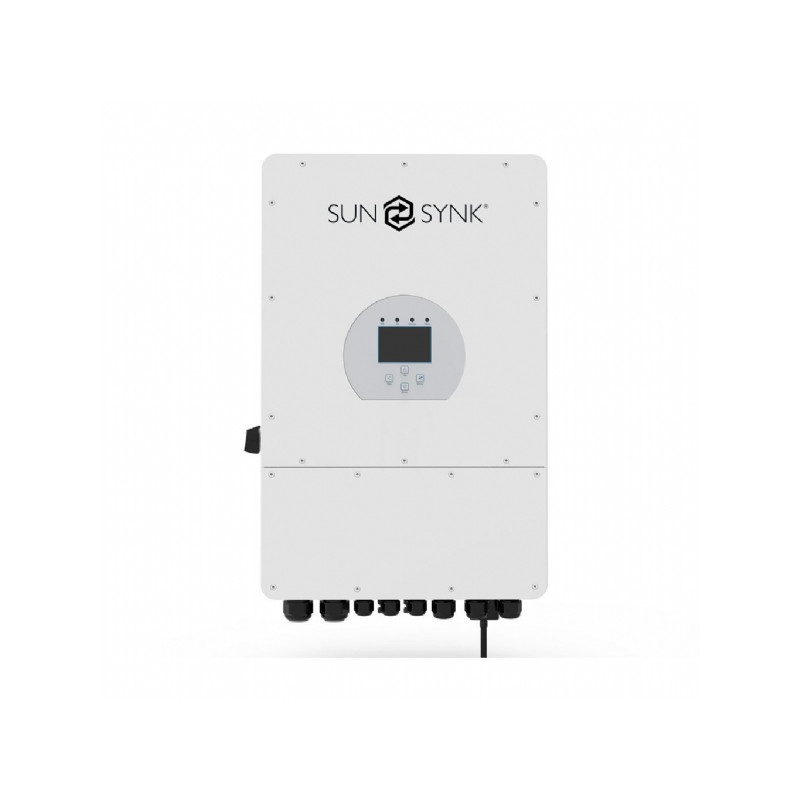

Sunsynk 10kW 1P Hybrid PV Inverter 48v C/W Wifi Dongle IP65

R41,000.00 incl. VAT

Description

Introducing the 10kW Sunsynk single phase Inverter: Harnessing the Power of the Sun for Greater Energy Independence

Designed for optimal performance and efficiency, the 10kW Sunsynk Inverter is a cutting-edge solution for residential and commercial solar systems. With its advanced technology and sleek design, this inverter seamlessly integrates into your solar power setup, maximizing energy production and minimizing environmental impact.

Key Features

High Efficiency:

The Sunsynk Inverter boasts high conversion efficiency, ensuring maximum energy harvest from your solar panels using 3 MPPT’s so more roof space can be utilised for North, East and West.

Intelligent Monitoring:

With built-in monitoring capabilities, users can easily track energy production and system performance in real-time.

Reliable Performance:

Engineered for durability and reliability, the Sunsynk Inverter delivers consistent performance even in challenging environmental conditions.

Grid Connectivity:

Seamlessly connect to the grid for optimal energy management and grid stability.

User-Friendly Interface:

Intuitive interface allows for easy setup and operation, making it accessible for both homeowners and professionals.

Scalable Design:

Expandable design enables system scalability, accommodating future energy needs effortlessly.

Experience the Future of Solar Energy with the 10kW Sunsynk Inverter. Contact us today to learn more about how this innovative technology can revolutionize your solar power experience.

10kW Sunsynk Datasheet





SKU: SUN-10.0-1 Categories: ,
- +
Compare
Share:
Weight 32 kg
Dimensions 42.0 × 67.0 × 23.3 cm

Reviews

There are no reviews yet.

Be the first to review “Sunsynk 10kW 1P Hybrid PV Inverter 48v C/W Wifi Dongle IP65”

Your email address will not be published. Required fields are marked *

Related products

8kw-Deye-Hybrid-Solar-Inverter-1
8kw-Deye-Hybrid-Solar-Inverter-1
Add to cart
Compare

Deye 8kW Hybrid Inverter

R33,000.00 incl. VAT
Improve self-consumption ratio up to 80%, reducing your electricity bill.
DC/AC ratio up to 1.3, completely suitable for double-side PV modular.
Two MPPT design, Max. efficiency of 97.6%.
  • Colourful Touch LCD Screen
  • Parallel up to 16 Units
  • Max Charging/Discharging Current of 190A
  • Compact & Stylish
  • Safe and Easy Installation
  • 5-year warranty
  • Set system parameters remotely with FREE SOLARMAN PRO App

 If installed with a Deye battery, the warranty on the inverter will increase to 10 Years.





Higher Yields

  •  Improve self-consumption ratio up to 80%
  • Reducing your electricity bill DC/AC ratio up to 1.3
  • Completely suitable for double-side PV modular Two MPPT design
  • Maximum efficiency of 97.6%

User Friendly

  • LCD Touch screen and buttons
  • Easy operation Compatible with a lithium-ion battery and lead-acid battery
  •  Web browser and mobile App monitoring supported

Reliable

  • PV lightning protection
  • Anti-islanding protection
  • Leakage current protection
  • IP65 protection
  • Automatically switch from Grid-Tied to Off-Grid mode within 5ms
  • Zero export function – prevents the system from feeding in to the grid.  NRS Approved
  • Fast reaction time is within 200ms in zero export mode

Smart

  • Programmable charging and discharging schedule
  • Both wind turbines and solar panels can be connected as DC input power
  •  16 units can be paralleled for higher system power
  • Retrofitting of an existing solar system to an energy storage system

Deye 8kW User Manual

Deye 8kW Data Sheet



Add to cart
Compare
Compare
8kw-Deye-Hybrid-Solar-Inverter-1
8kw-Deye-Hybrid-Solar-Inverter-1
Add to cart
Compare

Deye 5kW Hybrid Inverter

R20,300.00 incl. VAT

Key Features

  • LCD Touch screen and buttons, easy operation
  • Compatible with lithium-ion battery and lead acid battery
  • Web browser and mobile App monitoring supported
  • Improve self-consumption ratio up to 80%, reducing your electricity bill
  • DC/AC ratio up to 1.3, completely suitable for double-side PV modular
  • Two MPPT design, Max. efficiency of 97.6%
  • Programmable charging and discharging schedule
  • Both wind turbines and solar panels can be connected as DC input power

With the versatility of the Deye 5kW Hybrid Inverter you can:

  • Use it like a Grid-Tied, with panels only
  • Use it as a Load Shedding Solution, with batteries only
  • Use it in an Off-Grid situation, not connected to the grid
  • Use it in an On-Grid situation, connected to the grid
  • Use it as a UPS (Uninterrupted Power Supply)

Deye 5kW User Manual

Deye 5kW Data Sheet



Add to cart
Compare
Compare
Facebook Post – Service Update Notification
Read more
Compare

kodak solar off grid inverter max 7.2kw-48v

R0.00 incl. VAT

The KODAK OG-7.2 Max Off-Grid inverter is a 7200 watt inverter. This inverter boasts dual 4kW MPPT’s which adds flexibility to your design. The OG-7.2 can parallel up to 6 units in  a single or 3-phase configuration for a total of 43200kW. The OG-7.2 has a RGB light that changes colours depending on the inverter’s current working mode.

Features:

  • Built in Wi-Fi for online monitoring via the IOS or Android app
  • BMS communication via RS485, makes it compatible with Pylontech and KODAK batteries
  • Compatible with utilities main or generator
  • Built-in anti-dust kit
  • Dual 4kW MPPT’s
  • Parallel up to 6 units in single or 3-phase
  • High Voltage MPPT, less PV cable means less cost and less labour
  • 3 year warranty

When using a battery bank with less than 7200W continuous discharge, please ensure Program 41 is set according to the continuous discharge current of battery bank. ie. 1x FL5.2 battery = 100A discharge. Then set program 41 = 100A

Downloads:

Read more
Compare
Compare
sun_synk_08
Add to cart
Compare

Sunsynk Sun 8K Hybrid Inverter

R32,229.00 incl. VAT

The Sunsynk hybrid Inverter is the ideal inverter for managing power flow from multiple sources such as solar, main electrical grid and generator.

Product Features

  • Dual MPPT design
  • Compatible with most Lithium-ion batteries and Lead Acid batteries
  • Mobile App for monitoring
  • Anti-islanding protection
  • Automatic switching from Grid-Tied to Off-Grid mode
  • Zero export function
  • Up to 16 units can be paralleled
  • Essential and Non-Essential Loads outputs

Pylontech Comaptibility Tested:

  • US 3000C – 16 units
  • US 2000B-Plus

Downloads:

Add to cart
Compare
Compare
Sunsynk 16kW, 48Vdc Single Phase Hybrid Inverter with WIFI included
Add to cart
Compare

Sunsynk 16kW, 48Vdc Single Phase Hybrid Inverter with WIFI included

R61,520.00 incl. VAT

The Sunsynk MAX is a low voltage (48V) hybrid inverter suitable for off-grid, grid support, back-up and self-consumption PV systems. Moreover, the inverter can also be used in both three-phase and single phase parallel applications.



Features:

  • The largest single-phase hybrid Inverter on the market.
  • A total of 15 x inverters can be connected in a three-phase configuration (five units per phase) – giving a maximum power output of 240kW.
  • 3 x inverters can be connected in a single-phase configuration giving a total power of 48kW.
  • Contains 3 x MPPTs to allow for flexible PV array designs and improved efficiency.
  • Programmable multiple operation modes: on-grid/off-grid & UPS.
  • IP65 protection rating – suitable for most outdoor installations.
  • Wi-Fi dongle as standard – enabling remote monitoring via the Sunsynk cloud
  • Compatible with leading lithium battery brands such as Hubble Lithium, Pylontech LV, Freedomwon and Kodak (BL3.6).



Important

The Sunsynk 16kW does not have an ATS relay coil/switch.



Weight – 56 kg
Add to cart
Compare
Compare
5Kw-Lux-power-Off-grid-SNA
Add to cart
Compare

Luxpower SNA5000 5kW Off Grid Inverter

R10,900.00 incl. VAT

Luxpower 5kW Off-Grid Inverter – SNA 5000 is a versatile, advanced solar inverter designed for off-grid and hybrid systems. It offers several key features that make it a powerful and efficient choice for residential and commercial applications. Key features include

Key Features

  • Intelligent Off-Grid & Hybrid modes
  • PV and AC Power can power loads simultaneously
  • 2 x MPPT’s with wide input voltage range.
  • BMS communication to most leading brands of Batteries (See List)
  • Free monitoring via app and remote upgrades.
  • Single or unbalanced three phase
  • Parallel up to 10 units.
  • Independent generator interface.

Solar Select LuxPower SNA 5000

Battery Compatability list

  • BYD
  • Dyness
  • Hubble
  • Lithium Batteries SA
  • PylonTech
  • Shoto
  • Revo.

 Support:

supportsa@luxpowertek.com

Luxpower Eco Hybrid SNA Easter Training-  https://youtu.be/a4v5ponUACo

Luxpower Parallel Training- https://www.youtube.com/watch?v=6X70rwq2xQY&t=963s

Luxpower WiFi Connection-  https://youtu.be/mOc4qx3mQzQ

Luxpower ECO SNA to Pylon-  https://youtu.be/EAsdUTL-3ww

Luxpower Monitior System Setup-   https://youtu.be/cuDiuXLReX8

Luxpower SNA Connection & WiFi Setup-  https://youtu.be/GFzD18L0id4



Build-in BMS(Battery management System) -BMS Compatible with Volta, BYD, Dyness, Pylon, Revov, Shoto, CFE and UZ Energy.



General:
Model: SNA 5000 WPV
Warranty: 2years.
Battery voltage: 48VDC.



Output:
Rated power: 5000W/5000VA.
Parallel capacity: YES.
Normal output voltage: 230/240, Split phase 220/110 Vac.
Normal output frequency: 50/60Hz.
Surge power: 10000VA.
Switch time: 10ms.
Waveform: Pure sine wave.



Battery:
Battery Type: Lithium/Lead-Acid.
Normal Voltage: 51.2V/48V.
Max. Charge Voltage: 59V.

Solar:
Max. Recommended PV Power: 3200W/3200W.
MPPT Tracker: 2.
Max. PV Open Circuit Voltage: 480Vdc.
MPPT Voltage Range: 100-385Vdc.
Max. Solar Charge Current: 100A.
Max. Solar Input Current: 13A/13A.
Max. MPPT Eiciency: >98%.
Parallel MPPT Charger: YES.



Grid:
Normal Voltage: 230Vac.
AC Voltage Range: 110-280Vac.
Max. Charge Current: 60A.
Frequency Range: 50/60Hz (Auto Sensing).



Protection DegreeIP20.
Relative Humidity5%~95% Relative Humidity (Non-condensing).
Operating Temperature0°C~50°C.
Storage Temperature-15°C~60°C.
Interface.



Display: LCD+LED.
Lithium Battery Communication: CAN/RS485.
RS485/Dry Connector: YES/YES.
Wifi/GPRS: YES/YES.
Warranty: 2 years.



    • Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
